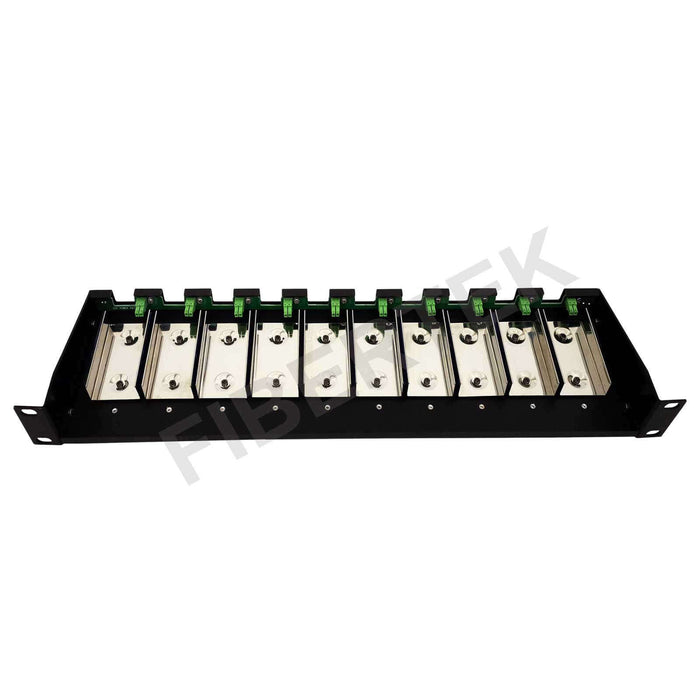

FCC-10-12-1M Chassis For Standalone Micro-type Video Converter 1U Height

Original price USD $200.00 - Original price USD $200.00
Original price
USD $200.00
USD $200.00 - USD $200.00
Current price USD $200.00

General Description

FCC-10-12-1M is a chassis that can support up to 10 units of micro type video and data fiber media converters. It is 1U in height and 19 inch in width which allows it to be fitted in most of the fiber server cabinets. It facilitates the monitoring of the performance of the micro-type converters as their LED indicators can be viewed easily from the front of the chassis. The converters can be removed from the chassis without interrupting the operation of the other units with the hot-swappable functionality of the chassis.



Specifications

Input power: Input Voltage: 110~240VAC, 50/60Hz

Output power: 40W Max. 3.34A@12VDC

Protections: Short Circuit, Overload, Over Voltage

Dimension (WxDxH): 478 x 136 x 44 mm

Weight (Kg): 0.7 (without packaging and exclude power supply)

No. of Empty Slots: 10

Mounting: 19” Rack, 1U Height

Operating Temperature: -40°C to +75°C (-40oF to 167oF)

Storage Temperature: -40°C to +85°C (-40oF to 185oF)

Relative Humidity: 0 to 95% non-condensing
