General Description

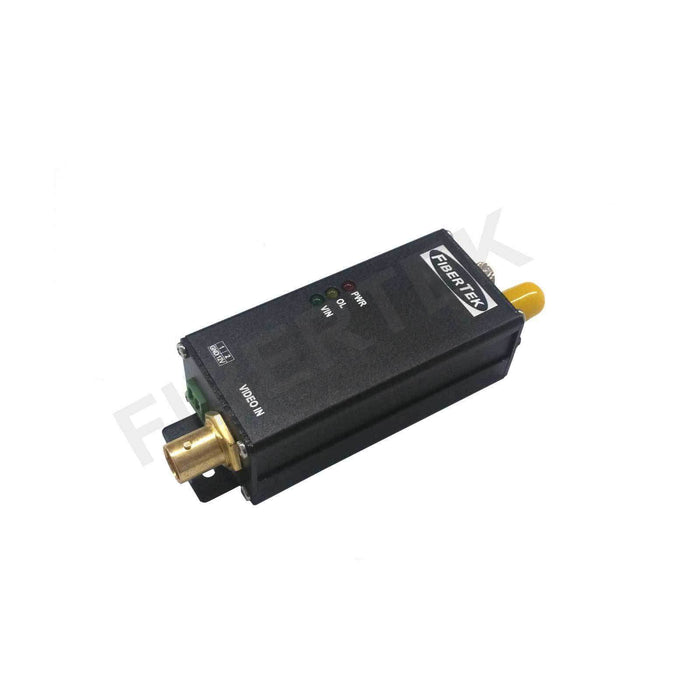

FC8-10000 Series is a fiber media video converter capable of transmitting the 8-bit PCM-coded video signal through a single unit of multimode or single-mode optical fiber with no degradation in the video quality transmitted. If the multimode optical fiber is selected, the transmission distance can reach 1km. On the other hand, the single-mode optical fibre can send the video signal over a distance of up to 4km. The FC8-10000 Series is designed to be compact in size to be fitted in the camera housings available in the market.
Features
• No video degradation over the transmission distance supported
• Supports several video systems such as NTSC, PAL and SECAM
• Suitable for deployment in harsh environments
• Plug and play, no set-up is required
Application Diagram
Specifications
Video
No. of Channel: 1
Bandwidth: ≥ 6MHz
Format: PAL/NTSC/SECAM
Input / Output:1.0 Vp-p, 75 ohms
Differential Gain:< 1% typical
Differential Phase:< 1° typical
Signal-to-Noise Ratio: > 60dB
Connectors
Optical: ST
Video: BNC
Power: 2-pin screw terminal
Electrical and Mechanical
Power: 12VDC @1.8W
Dimensions (WxHxD): 36.2 x 24.5 x 101 (111*)mm
Weight: 0.1kg (exclude packaging)
LED
Video Signal Indication (Presence): Green LED-lit
Optical Carrier Detected: Yellow / Active
Power: Red / On
Environmental
Operating Temperature: -40°C to +75°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 0 to 95% non-condensing
MTBF:> 100,000 hours
Wavelength, Optical Power Budget and Distance Transmitted
| Model |
Wavelength |
Optical Power Budget |
Maximum Distance |
| FC8-10000-STST-1M |
1310nm |
17dB |
20km |
| FC8-10000-SRST-1M |
1310nm |
17dB |
20km |
Accessories for FC8-1000 series - UK power adapter and wall mounting bracket
