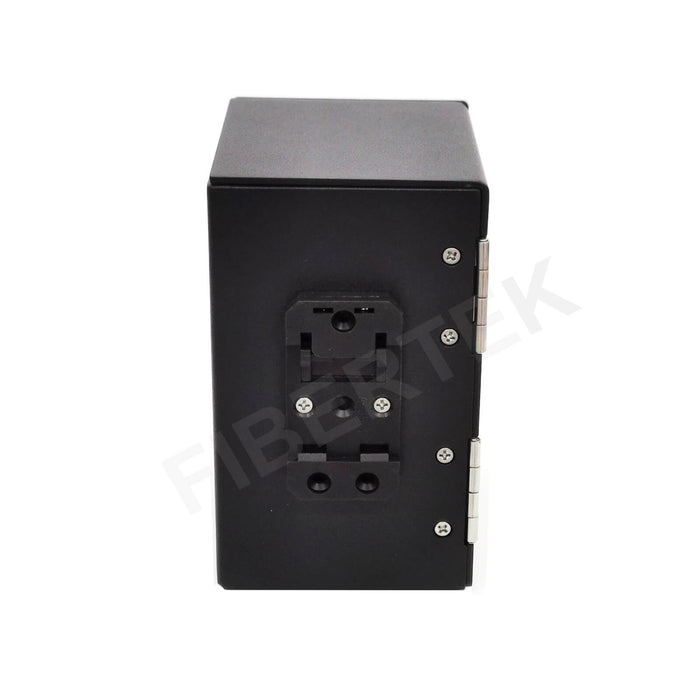

Side View of DPPY24-12-S6A(BK) STP CAT 6A DIN Rail Ethernet Copper Patch Panel

DIN Rail Ethernet Copper Patch Panel STP CAT 6A DPPY24-12-S6A(BK)

by FiberTek Pte Ltd
USD $120.00 - USD $120.00
USD $120.00 (Excl. GST)
USD $130.80 (Incl. GST)
USD $120.00 - USD $120.00
USD $120.00 (Excl. GST)
USD $130.80 (Incl. GST)

General Description

The DPPY24-12-S6A(BK) is an industrial-grade DIN Rail Mount Ethernet Copper Patch Panel fully loaded with 12 STP Cat 6A keystone jacks which are backwards compatible with the Cat6, Cat5e and Cat5 standards.

The copper patch panel is deployed to provide a secure casing to store terminated Ethernet category cables and serve as an interface for patching with other Ethernet category equipment. As it is compact in size and light in weight, it can be mounted on a DIN Rail track and installed together with other devices in the same server cabinet to reduce deployment costs.



Features

  • space saving - can be mounted on DIN Rail track
  • 4 cable entries from the bottom of the panel
  • support up to 12 Ethernet port termination
  • come with double stackable cable holders



Specifications

DIN Rail Panel

  • Dimension : 140 mm Height  x 82mm Width x 103mm Depth

Dimension diagram for STP Cat 6A DPPY24-12-S6A(BK) Patch Panel

  • Material: Powder Coated Aluminium
  • Weight: 0.75kg (12 ports fully loaded)


STP Cat 6A Keystone Jack

FTP Cat 6A Keystone Jack

  • Category: 6A
  • Bandwidth, MHz: 500
  • Connection style: Shielded
  • Connector type: RJ45 / 8P8C
  • Connector material in the connector: Phosphor bronze
  • Contact coating material: Gold (50 microns)
  • Number of insertions: Up to 750
  • IDC contact: 180 degrees - Toolless
  • Permissible diameter of conductor: 23 to 26AWG
  • Temperature range: Storage -40 to +60°C / Operation -10 to +60°C
  • Colour: Metallic
  • Dimensions, W x H x D (mm): 16.2 x 21.9 x 28.2
  • Compliance: Exceeds standard ISO/IEC 11801, EN50173, TIA/EIA-568
  • Supported application: 10Base-T, 100Base-T, 1000Base-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
