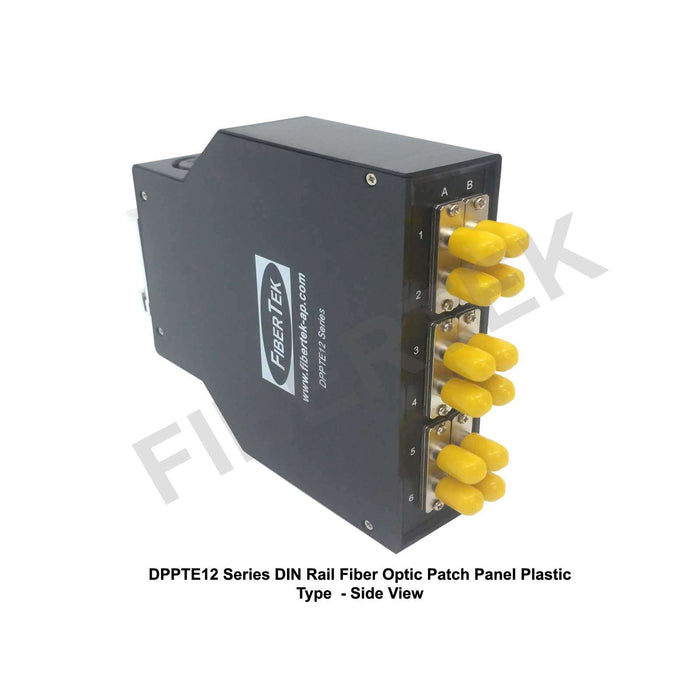

DIN Rail Fiber Optic Patch Panel ST Duplex Adapter Plastic Type 12 Ports - DPPTE12 Series

General Description

The DPPTE12 series DIN Rail Fiber Optic Patch Panel with ST Duplex adapters are loaded with ST Duplex adapters. Both ST duplex Singlemode or Multimode adapter types are supported.  The DPPTE12 series patch panel can support 12 ports when it is fully loaded.  It is made of lightweight ABS+PC (ABS/Polycarbonate) material that will provide the panel with lightweight functionality.  This light functionality cum with the compact size of the panel allows it to be deployed in areas with space constraints.

Features

• Splicing or terminating works of two  fiber optic cables can be performed inside the same patch panel as two cable entries are provided
• Body of the patch panel is made with lightweight flame-retardant ABS+PC material
• Faceplate of the patch panel is made with cold-rolled steel
• Integrated splice tray that can be flipped over without unscrewing
• Support ST Duplex Adapter Type




Specifications

Dimension: 133mm Height  x 35mm Width x 134mm Depth

Weight: 0.22kg (when fully loaded)

Additional Product Information: All DPPTE12 DIN Rail fiber optic patch panels will be loaded with ST Duplex adapters, 2 cable glands (PG13.5) and 40mm splice sleeves (FSLEEVE040)
