General Description

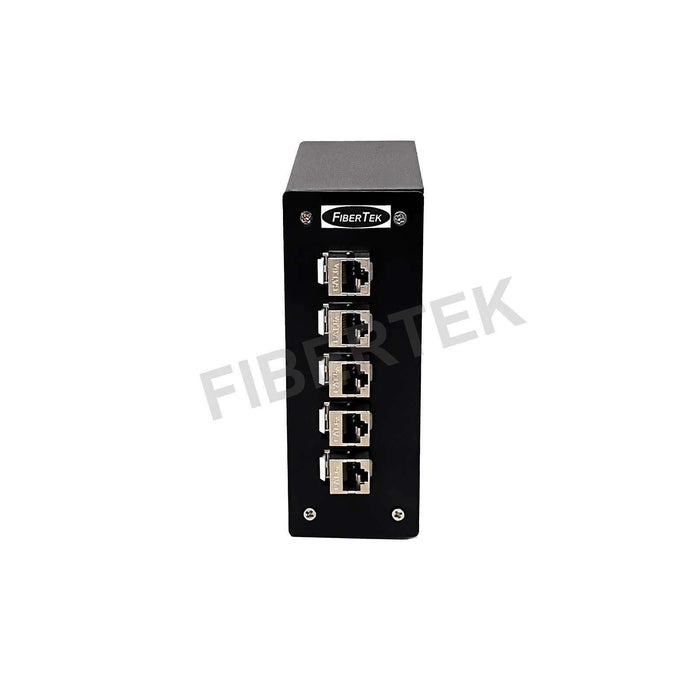

The DPPY12-05-S6A(BK) Industrial DIN Rail Mount Ethernet Copper Patch Panel comes with 5 Ethernet ports that are loaded with STP Cat 6A keystone jacks. These jacks are backwards-compatible with Cat6, Cat5e and Cat5.

The DPPY12-05-S6A(BK) Industrial DIN Rail Mount Ethernet Copper Patch Panel can support the patching and termination work of the Ethernet copper network connection.

With its compact size and lightweight design, the DPPY12-05-S6A(BK) patch panel can provide space-saving, as it only requires a small space for its deployment. It can be installed in the same rack cabinet as the other networking devices. On the other hand, the swing-out design helps to reduce the time required for both pre- and post-assembly work, as there are fewer loose components to be handled.



Features

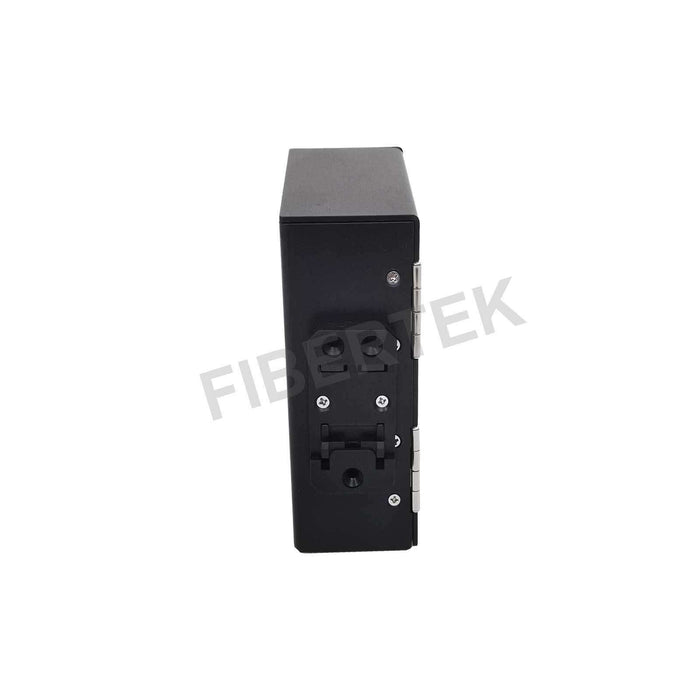

  • Can be mounted on DIN Rail to save space
  • 2 M22 cable glands - Suitable for cables with an outer diameter that ranges from 8mm to 14mm (± 1mm)
  • Supports up to 5 Ethernet port terminations

Specifications

DIN Rail Panel

  • Dimensions : 140 mm Height  x 54mm Width x 103 Depth

Dimension diagram for FTP Cat 6A DPPY12-05-F6A(BK) Patch Panel

  • Material: Powder Coated Aluminium
  • Weight:  0.5kg (5 ports fully loaded)


STP Cat 6A Keystone Jack

FTP Cat 6A Keystone Jack

  • Category: 6A
  • Bandwidth, MHz: 500
  • Connection style: Shielded
  • Connector type: RJ45 / 8P8C
  • Connector material in the connector: Phosphor bronze
  • Contact coating material: Gold (50 microns)
  • Number of insertions: Up to 750
  • IDC contact: 180 degrees - Toolless
  • Permissible diameter of conductor: 23 to 26AWG
  • Temperature range: Storage -40 to +60°C / Operation -10 to +60°C
  • Colour: Metallic
  • Dimensions, W x H x D (mm): 16.2 x 21.9 x 28.2
  • Compliance: Exceeds standard ISO/IEC 11801, EN50173, TIA/EIA-568
  • Supported application: 10Base-T, 100Base-T, 1000Base-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
