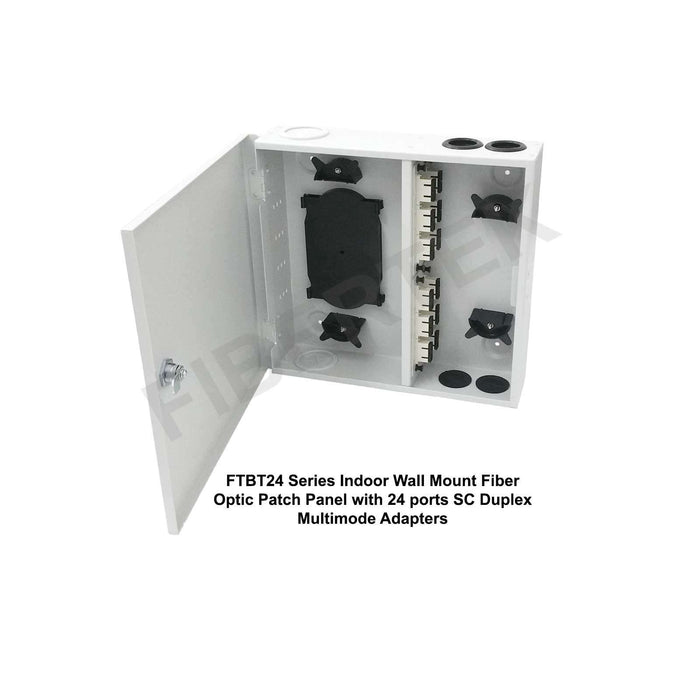

Indoor Wall Mount Fiber Optic Patch Panels FTBT24 Series

Original price USD $90.00 - Original price USD $160.00
Original price
USD $100.00 (Excl. GST)
USD $109.00 (Incl. GST)
USD $90.00 - USD $160.00
Current price
USD $100.00 (Excl. GST)
USD $109.00 (Incl. GST)

General Description

The FTBT24 Series Indoor Wall Mount Fiber patch panels can support the termination work of optical fibers with fiber optic connectors or optical splicing work with fiber optic pigtails. The optical fibers can then be stored securely in the FTBT24 series patch panels. Various fiber optic adapter types are supported and if the LC duplex adapter type is selected up to 48 fiber ports can be supported.



Basic Construction

Basic construction with dimensions for FTBT24 Series

Features

  • Consist of two compartments – one compartment for splicing of optical fibers, the other compartment for the optical patching and storing of the fiber optic patch cords
  • Modular adapter plates to cater to various ports of fiber optic adapters
  • Up to 24 ports are supported (if LC duplex adapter type is selected up to 48 ports can be supported)
  • Key lock for security purposes
  • Consist of 6 cable entries with rubber grommets

Specifications

Material: Powder-coated aluminium (Colour: RAL 7035, Light Grey)

Dimension (H x W x D): 305mm x 302.5 mm x 80.5mm

Weight: 1.65kg (exclude packaging)

Additional Product Information: FTBT24 Series Indoor wall mount fiber optic patch panel will be loaded with adapters required, splice trays, spools and splice sleeves.
