General Description
The FPP296 series with SC Duplex Adapters is a 19-inch rack mount fiber patch panel that will come pre-loaded with the SC duplex adapters. The fiber patch panel when it is fully loaded can accommodate up to 96 optical fibers occupying only a 2U height to provide space saving especially if it is being deployed on the server rack cabinet.
To facilitate installation or troubleshooting work, the FPP296 series with SC duplex adapter has a slidable working tray which can be lowered to various working angles such as 45 degrees to allow the cable connections to be reached even after the panel has been installed on the server rack cabinet. The fiber patch panel also comes with a removable top cover that can be removed for installation and maintenance work to be carried out.
FPP296 series Removable Top Cover
Features
- Pre-Loaded with SC Duplex Fiber Optic Adapters
- Simple Splice Management Kit provided - Spools, cable glands, splice trays
and splice sleeves are provided
- Protrude or recess mounting option as side mounting brackets
are adjustable

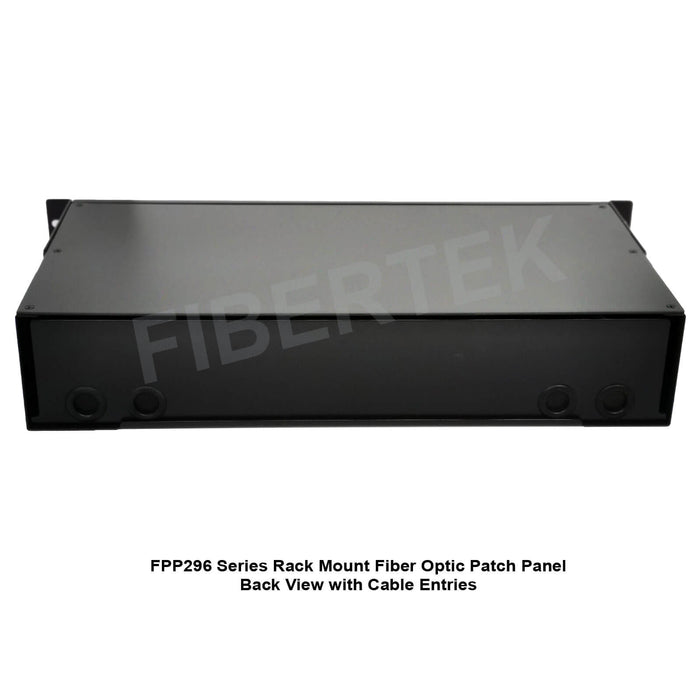

- 4 cable entries (20mm) with cable gland and dust cover
- 4 clamping system to secure strength member from cable
Specifications
Dimension: 87mm Height x 482mm Width x 230mm Depth
Mounting Adjustment Range: 50mm
Material & Coating: Aluminium, Electro-Static Powder Coating
Material Thickness: 1.5mm
IP Rating: IP20
Colour: Black RAL 9004
Weight: 2.5kg (fully loaded without packaging)
Operating Temperature: -20 degrees Celsius to 70 degrees Celsius
Standards comply: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
Additional Product Information: The FPP296 Series rack Mount Patch Panel with SC duplex adapters will be loaded with SC duplex adapters (according to the number of ports specified, splice trays (depending on the number of ports), 1 set of spools, 4 cable glands and splice sleeves (according to the number of ports specified).
