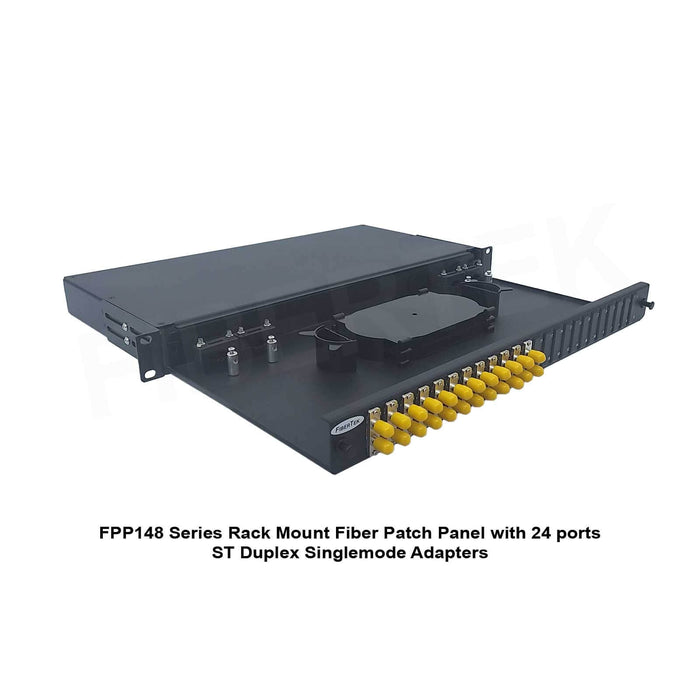

The FPP148 series rack mount fiber optic patch panel with ST duplex fiber optic adapters can support up to 48 optical fibers. It will come with a simple splice management kit which includes a splice tray, sleeves and spools to support the optical splicing needs.
One main feature of the FPP148 series patch panel is the slidable working tray, this tray can be adjusted to different angles (ranging from 10 degrees to 45 degrees) to make it easier for installation or maintenance work to be carried out. The rack mount patch panel also comes with a removable top cover to support installation and maintenance works.
Features
- Pre-loaded with ST Duplex Fiber Optic Adapters
- Spools, cable glands, splice trays and splice sleeves are provided
- Protrude or recess mounting option available by adjusting the side mounting brackets
- 4 cable entries (20mm) with cable gland and dust cover
- 4 clamping system to secure strength member from cable
Specifications
Dimension: 44mm Height x 482mm Width x 230mm Depth
Mounting Adjustment Range: 50mm
Material & Coating: Aluminium, Electro-Static Powder Coating
Material Thickness: 1.5mm
IP Rating: IP20
Colour: Black RAL 9004
Weight: 1.8kg (without packaging)
Operating Temperature: -20 degrees Celsius to 70 degrees Celsius
Standards comply: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
Additional Product Information: The FPP148 Series Rack Mount Patch Panel with ST duplex adapters will be loaded with ST duplex adapters (according to the number of ports specified), 1 to 2 splice trays (one splice tray can support up to 24 ports), 1 set of spools, 4 cable glands and splice sleeves (according to the number of ports specified).
