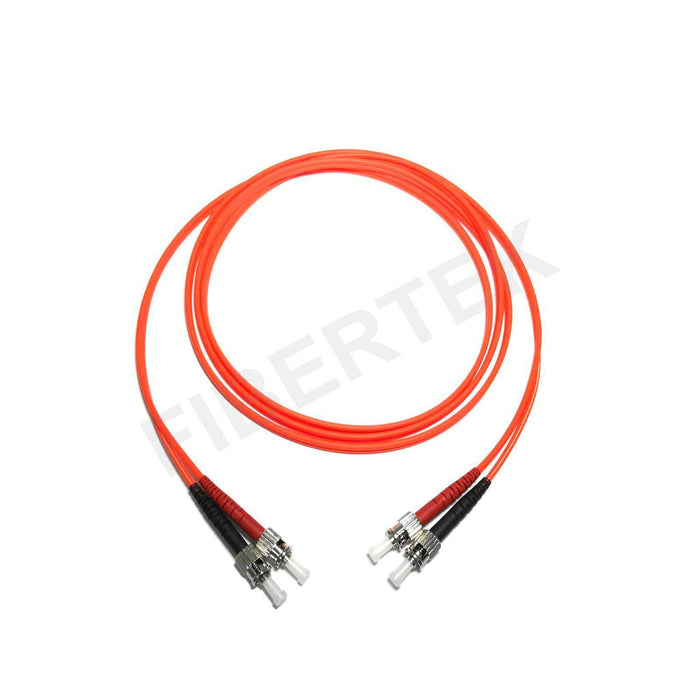

ST UPC to ST UPC Fiber Optic Patch cord, LSZH Jacket

Original price USD $7.50 - Original price USD $20.00
Original price
USD $8.50 (Excl. GST)
USD $9.26 (Incl. GST)
USD $7.50 - USD $20.00
Current price
USD $8.50 (Excl. GST)
USD $9.26 (Incl. GST)

General Description

The ST UPC to ST UPC fiber optic patch cord consists of a fiber optic patch cable that is terminated with an ST UPC fiber optic connector on both sides. As the end faces of the ST fiber optic connectors are utilizing the UPC surface finish,  attenuation loss will be reduced. A variety of lengths and fiber types are available for the ST to ST fiber optic patch cord supporting various requirements in the optical network connection.

Basic Construction of Patch Cable

Duplex Patch Cord Construction Diagram

Specifications

Fiber Core Diameter: (SM) 9/125um (G.652D), (MM) 50/125um (OM2, OM3 and OM4), 62.5/125um (OM1)

Return Loss (SM only):
< -50dB (UPC)

Insertion Loss:
< 0.3dB max.

Durability (500 matings):
< 0.2dB max increase

Operating Temperature:
-20 ~ +70 degree Celsius
