General Description

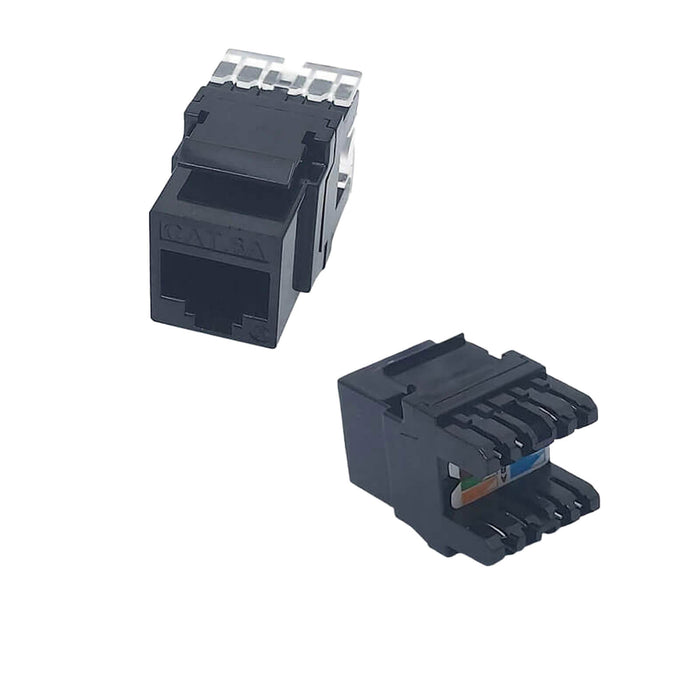

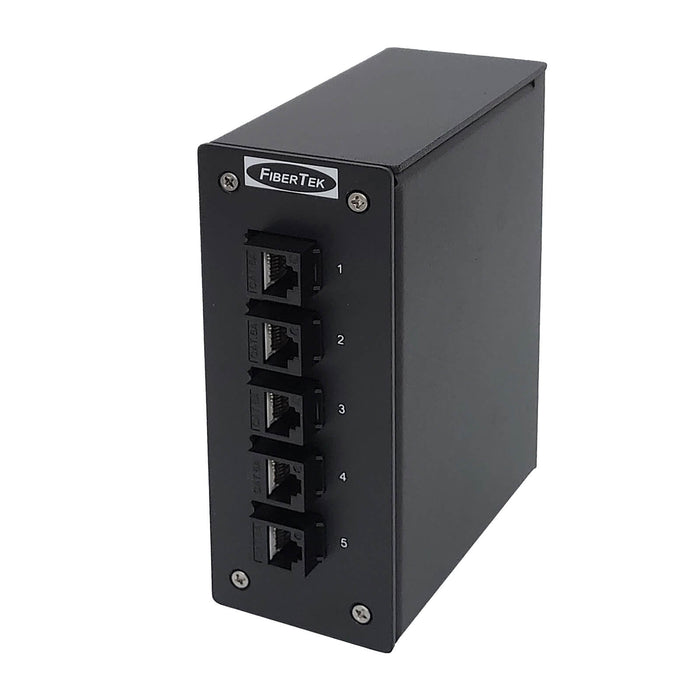

The DPPY12-05-U6A(BK) is an Industrial DIN Rail Mount Ethernet Copper Patch Panel loaded with 5 UTP Cat 6A keystone jacks (backwards compatible to Cat6, Cat5e and Cat5) to support termination and patching of the Ethernet copper network connection.

The DPPY12-05-U6A(BK) Ethernet copper patch panel is lightweight in design and compact in size. Hence, it can be mounted in the same enclosures as other network equipment to provide space-saving.

With the swing-out design, the DPPY12-05-U6A(BK) Ethernet copper patch panel provides ease of installation with lesser preparation work required before the termination work. And, the tendency of misplacing components is minimized as there are fewer loose parts to be handled.

Features

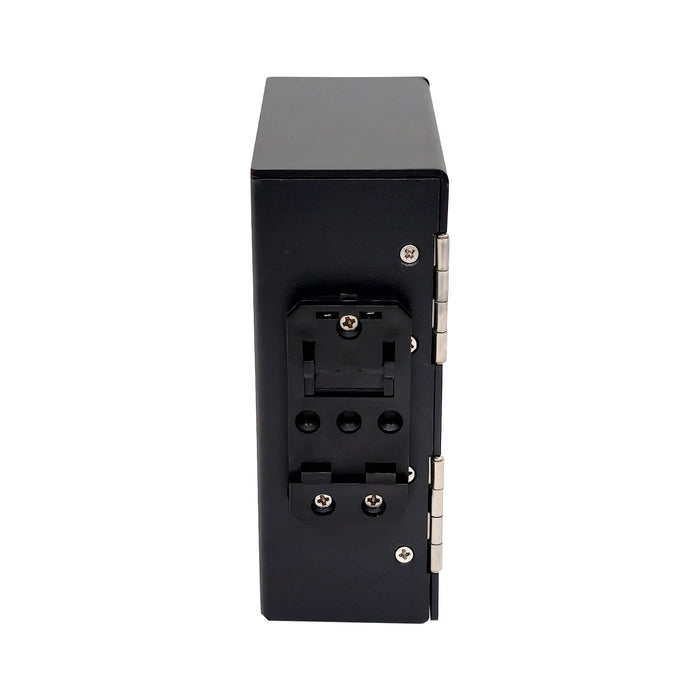

  • Space-saving installation - can be DIN-Rail mounted
  • 2 cable glands - M22 for cable with an outer diameter that ranges from 8mm to 14mm (± 1mm)
  • Support  up to 5 Ethernet port termination
  • Double stackable cable holder



Specifications

DIN Rail Panel

  • Dimension : 140 mm Height  x 54mm Width x 103 Depth

Dimension diagram for DPPY12 UTP CAT6 DIN Rail Copper Patch Panel

  • Material: Powder Coated Aluminium
  • Weight:  0.5kg (5 ports fully loaded)


UTP Cat 6A Keystone Jack

  • Category: 6A
  • Bandwidth, MHz: 500
  • Connection style: Unshielded
  • Connector type: RJ45 / 8P8C
  • Connector material in the connector: Phosphor bronze
  • Contact coating material: Gold (50 microns)
  • Number of insertions: Up to 750
  • IDC contact: 180 degree - Toolless
  • Permissible diameter of conductor: 23 to 26AWG
  • Temperature range: Storage -40 to +60°C / Operation -10 to +60°C
  • Colour: White
  • Dimensions, W x H x D (mm): 16.2 x 20.9 x 31.5
  • Compliance: Exceeds standard ISO/IEC 11801, EN50173, TIA/EIA-568
  • Supported application: 10Base-T, 100Base-T, 1000Base-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
