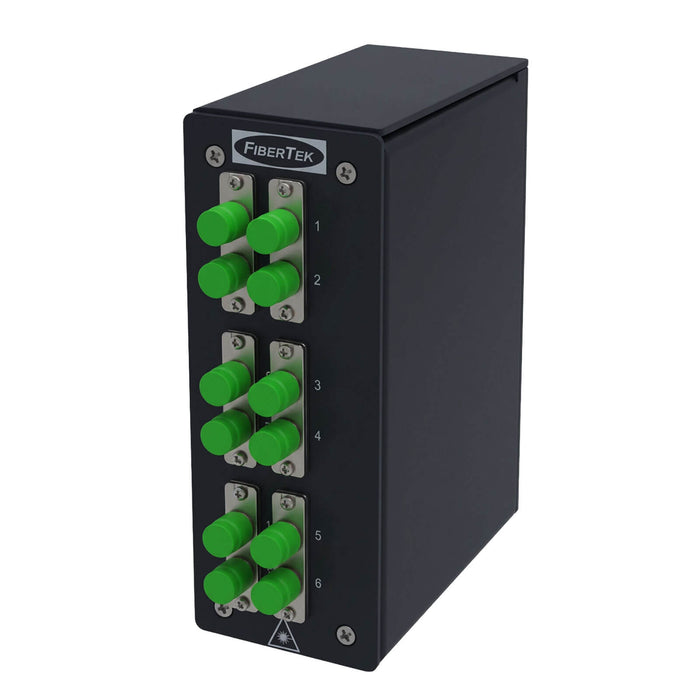

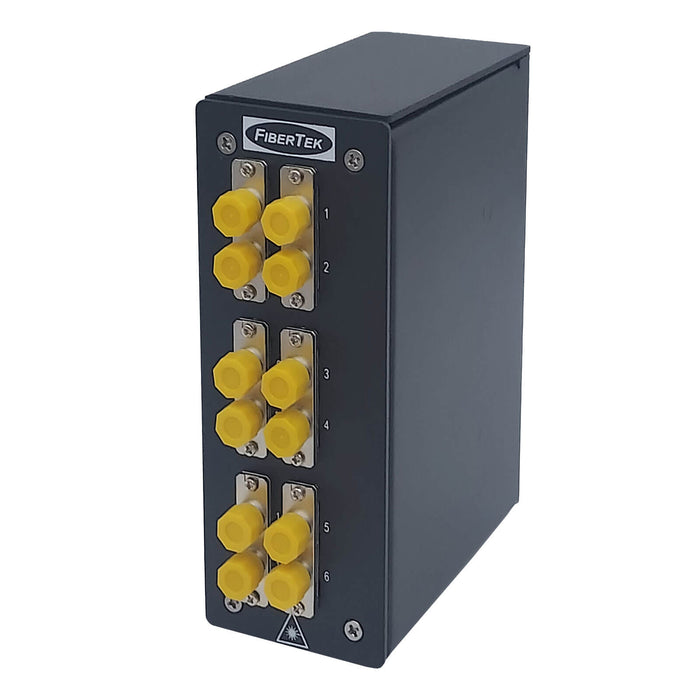

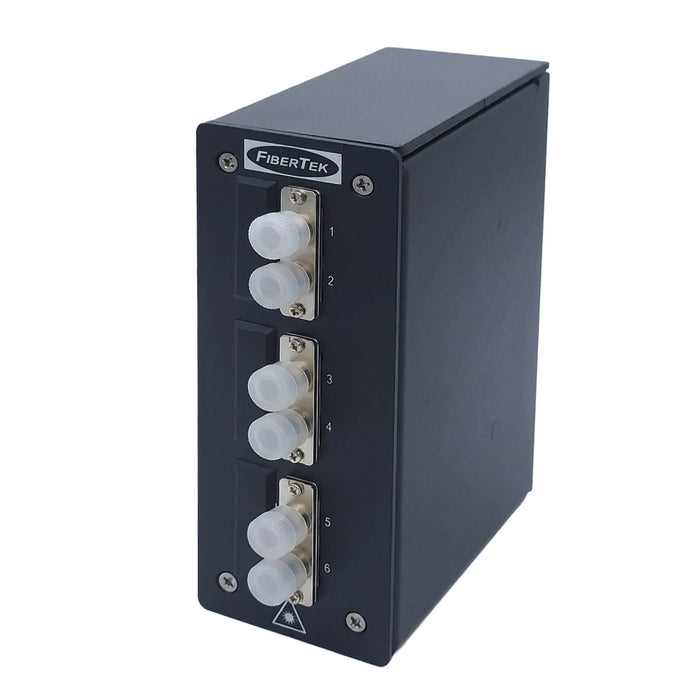

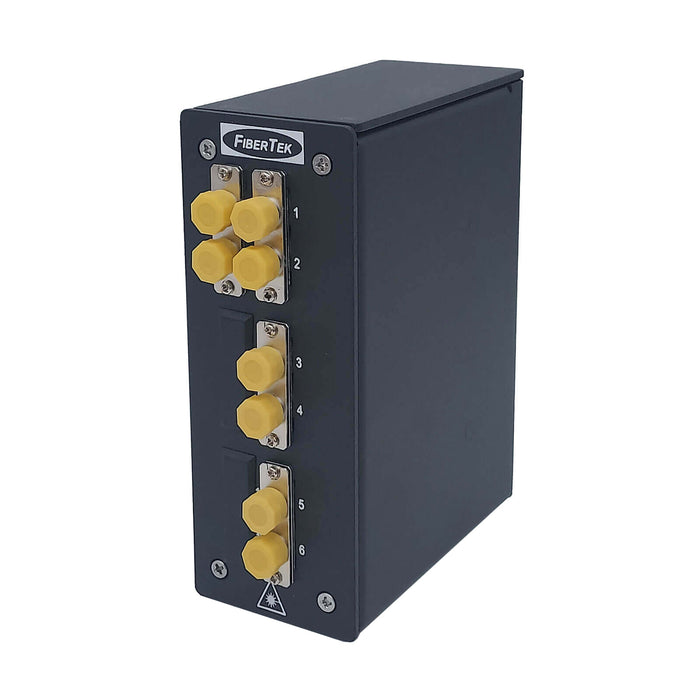

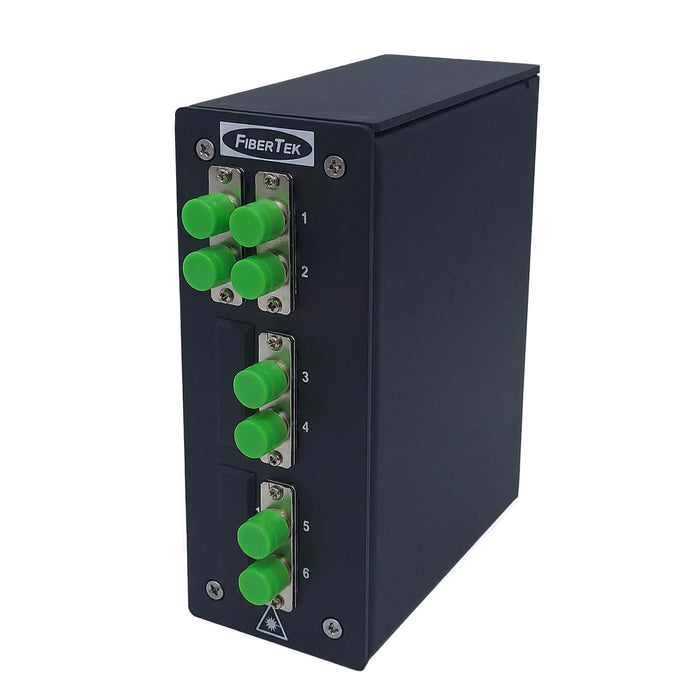

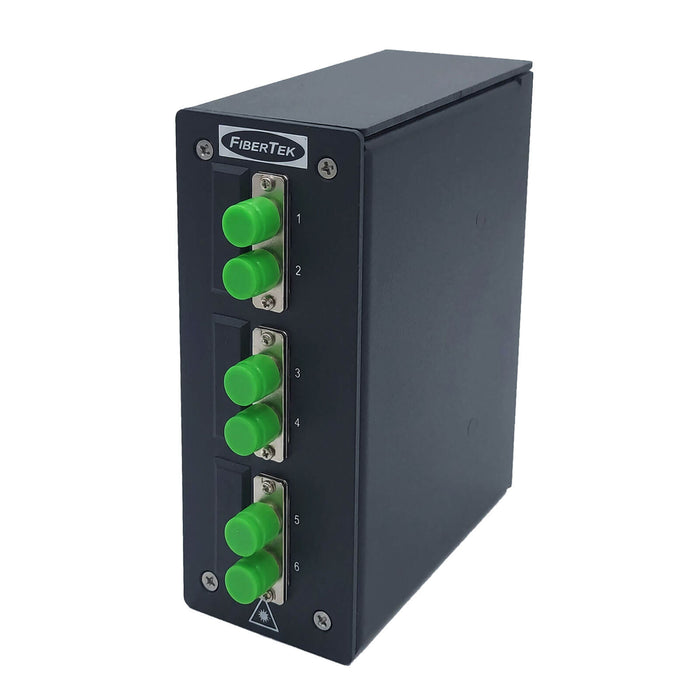

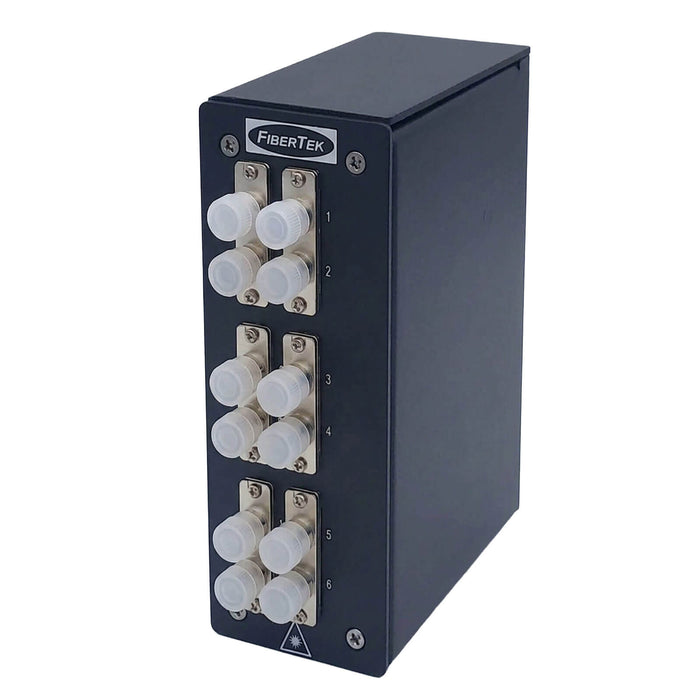

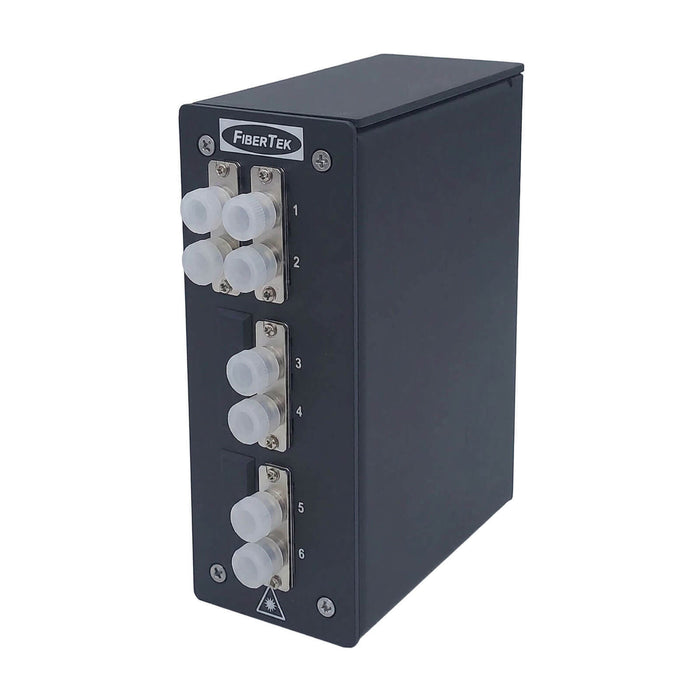

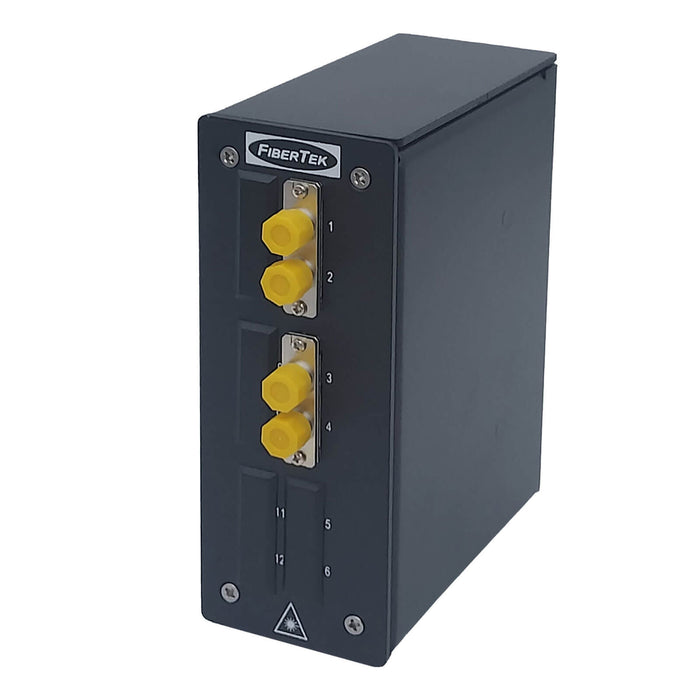

DPPY12 Series DIN Rail Fiber Patch Panel with 8 ports FC Duplex Singlemode Adapters

DIN Rail Fiber Optic Patch Panel DPPY12 with FC Duplex Adapters (BK Series)

by FiberTek Pte Ltd
USD $90.00 - USD $99.00
USD $90.00 (Excl. GST)
USD $98.10 (Incl. GST)
USD $90.00 - USD $99.00
USD $90.00 (Excl. GST)
USD $98.10 (Incl. GST)

General Description

The DPPY12 BK Series FC Duplex Adapters DIN Rail Fiber Optic Patch Panel is created with high-quality powder-coated aluminium material that provides a lightweight property. With its lightweight cum compact properties, the DIN Rail Fiber Optic Patch Panel can be deployed with the other fiber optic network equipment in the same server rack cabinet to reduce the amount of fiber optic cabling needed to lower deployment costs in the network connections.

When the DPPY12 DIN Rail Fiber Optic Patch Panel is fully loaded, it can provide secure storage for up to 12 terminated or spliced optical fibers. On top of this, the DPPY12 DIN Rail patch panel comes with a swing-out design, which reduces assembly time as lesser unscrewing and screwing works are needed.


Mounting of the DIN Rail clip

DIN Rail Mounting Vertical and Horizontal for DPPY12 BK FC Duplex DIN Rail patch panelFeatures
  • Space-saving installation
  • DIN Rail mounting
  • Double stackable fixed position splice holders which can support up to 12 splices per holder
  • Comes with 2 x M22 cable gland to cater for cable with an outer diameter that ranges from 8mm to 14mm (± 1mm)

Specifications

  • Dimension : 140 mm Height  x 54mm Width x 103 Depth

Dimension of DPPY12 BK FC Duplex DIN Rail Patch Panel

  • Material: Powder Coated Aluminium
  • Loaded with FC duplex adapter type
  • Weight:  0.4 kg (12 ports fully loaded)

Additional Product Information: All DIN Rail fiber optic patch panels will be loaded with FC duplex adapters, 2 x Splice holders (S-HO06Z), 2 x M22 cable glands, 40mm splice sleeves  (depending on the number of ports selected) and  3 x cable clips. Those optical ports not loaded with adapters will be fitted with blank plugs.


Accessories of DPPY12 BK Series FC Duplex DIN Rail Patch Panel
