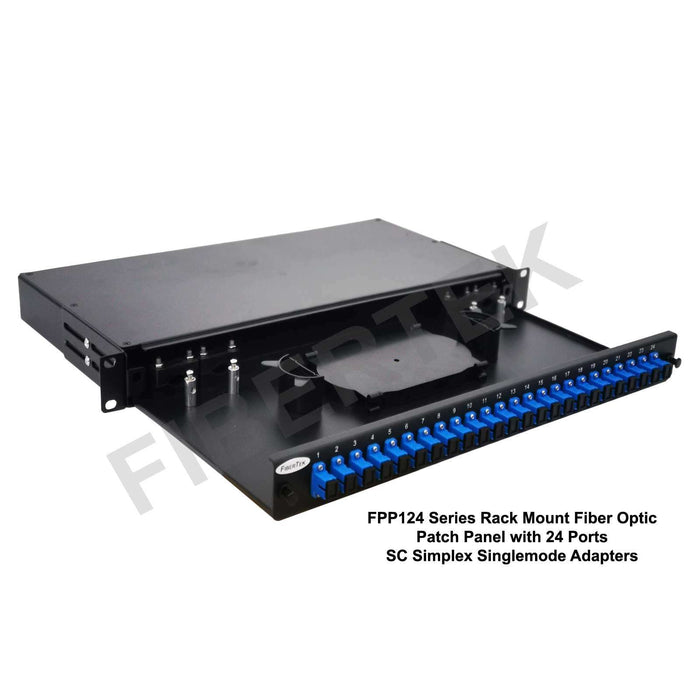

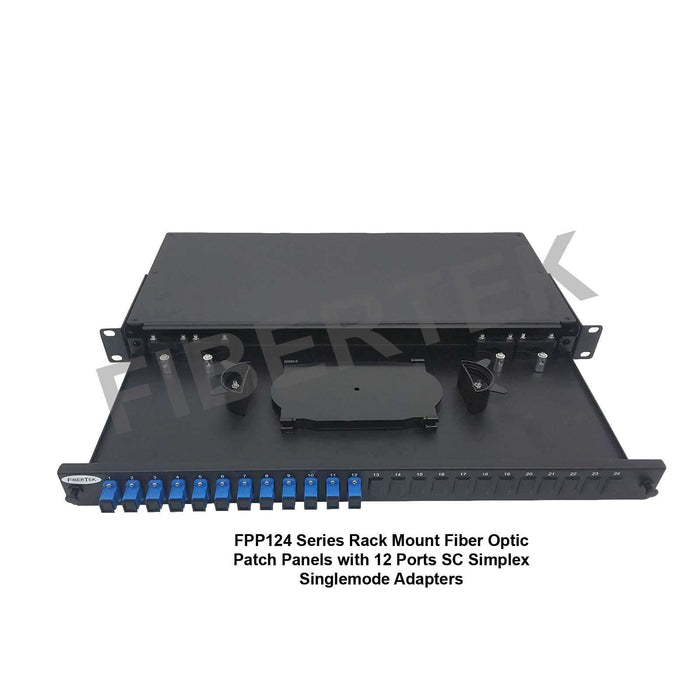

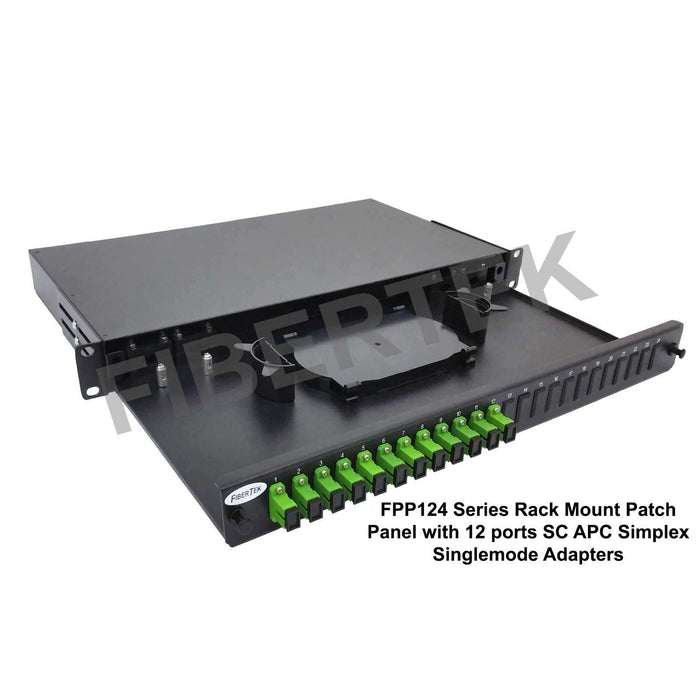

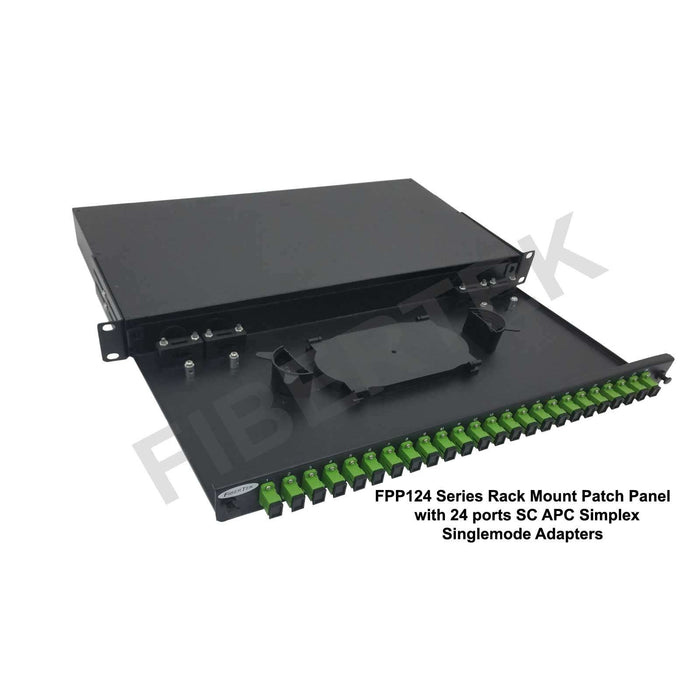

The FPP124 series SC simplex rack mount sliding fiber optic patch panels are available in 1U height and can be mounted on the server rack. They can be deployed to provide secure and neat housing for the spliced optical fibers from the fibre optic cables. The patch panels are loaded with the SC simplex adapters, splice trays and spools to facilitate the optical splicing work.
One key feature of the FPP124 series SC simplex patch panels is the slidable working tray which can be adjusted to different working angles (from 10 degrees or even lowered to 45 degrees). This feature will make it easier to carry out installation and maintenance work even if the patch panels are already installed on the rack of the server cabinet. On top of this, the patch panels also come with a removable top cover which will also help to facilitate the maintenance and installation works.
Features

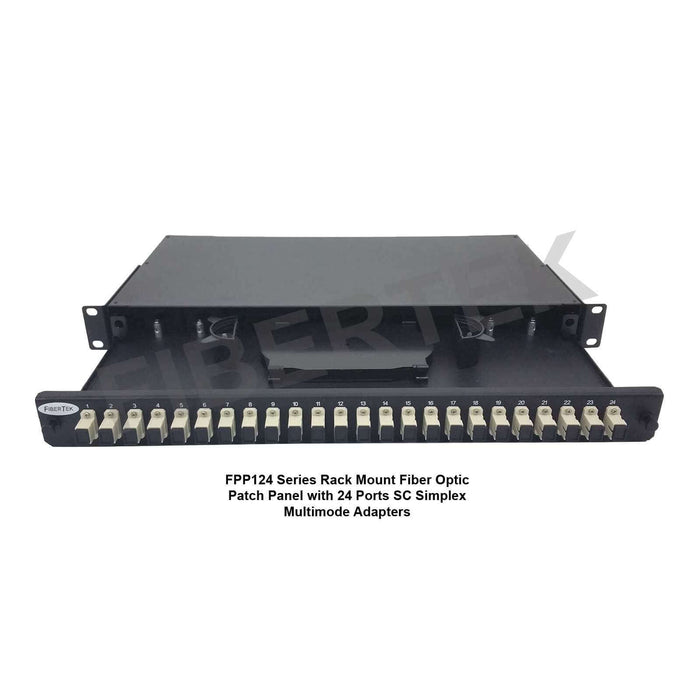

- Come with either Singlemode or multimode SC simplex adapter type
- Spools, cable glands, splice trays and splice sleeves - splice management kit is provided
- Side mounting brackets that can provide either protrude or recess mounting option
- 4 cable entries (20mm) come with cable glands and dust covers
- 4 clamping system to secure strength member of the fiber optic cable
Specifications
Dimension: 44mm Height x 482mm Width x 230mm Depth
Mounting Adjustment Range: 50mm
Material & Coating: Aluminium, Electro-Static Powder Coating
Material Thickness: 1.5mm
IP Rating: IP20
Colour: Black RAL 9004
Weight: 1.8kg (without packaging)
Operating Temperature: -20 degrees Celsius to 70 degrees Celsius
Standards comply: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
Additional Product Information: The FPP124 Series Rack Mount Patch Panel with SC Simplex adapters will be loaded with SC simplex adapters (according to the number of ports specified), 1 splice tray, 1 set of spools, 4 cable glands and splice sleeves (according to the number of ports specified).
