General Description

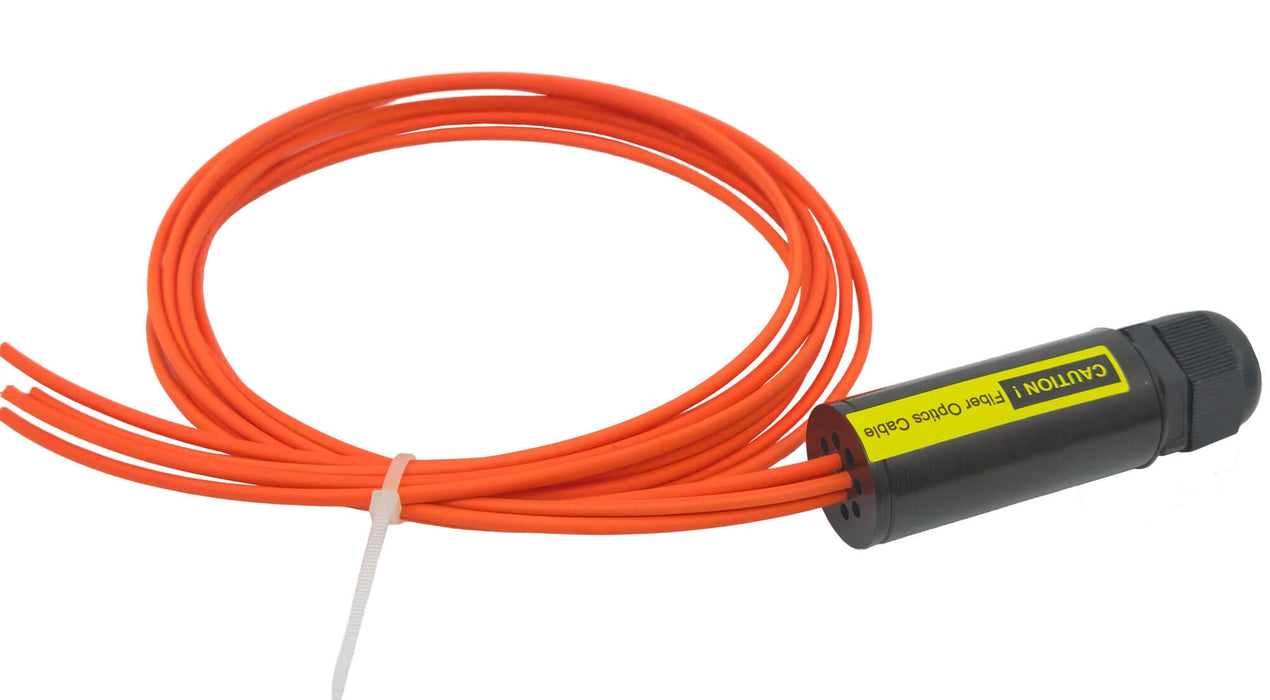

The FBK Series Breakout Kit provides a reliable solution for terminating individual fibers directly from fiber optic cables. It securely houses and protects exposed fibers while providing additional support and strain relief helping to minimize fiber movement, damage, and breakage during installation and handling.
Designed for easy, secure fiber termination, the FBK Series helps improve installation efficiency while delivering a more robust transition from the cable to individual fiber connectors.
Available in 2, 4, 6, 8 and 12 core configurations, the kit supports optical fibers with diameters of up to 900 um and is suitable for a wide range of fiber optic cable termination applications.
Key Benefits
- Protects exposed fibers during termination and installation
- Provides added strain relief to help reduce fiber breakage
- Improves fiber-to-connector support for more reliable termination
- Simplifies direct fiber termination from fiber optic cables
- Multiple core options: 2, 4, 6, 8, and 12 cores
- Supports fibers up to 900 um in diameter
Specifications
Cable Diameter Range: 6.5 to 12mm
Fiber Size: 250um to 900um
Tubing Length: 1 meter (Standard Length). Other lengths are available upon request.
Furcation Tube Size: 1.4mm (Inner diameter), 1.7mm (Outer Diameter)
Furcation Tube Material: Hytrel
Strength Member: Aramid Yarn
Jacket Size: 3.0mm (Outer Diameter)
Jacket Material: Low Smoke Zero Halogen (LSZH)
Main Body Dimension: 26.50mm (max. O.D.) x 83.00mm (including cable gland)
Main Body Material: Black Anodized Aluminium
Cable Gland Material: Nylon 66, UL 94V-2
Mechanical Characteristics
Tube Tensile Strength: Long term 50N, Short term 100N
Tube Bending Radius: Long term 10 x OD, Short term 20 x OD
Installation Temperature: -20°C to +50°C
Operating Temperature: -40°C to +75°C
Safety Compliance
LSZH Grade
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754-2
Smoke Emission Test: IEC 61034-1/2
Flammability Test: IEC60332-1 & -3C
