General Description

The DPPY24-12-U6A(BK) DIN Rail Mount Ethernet Copper Patch Panel can be loaded with 12 STP Cat 6A keystone jacks which can work backwards with Cat6, Cat5e and Cat5 standards. It is suitable to be deployed at places where space is limited, as it is both compact in size and light in weight to fit in most enclosures. It can be installed inside the same server rack cabinet with the other Ethernet networking devices to reduce the amount of network cabling required and this will help to lower the deployment cost.



Features

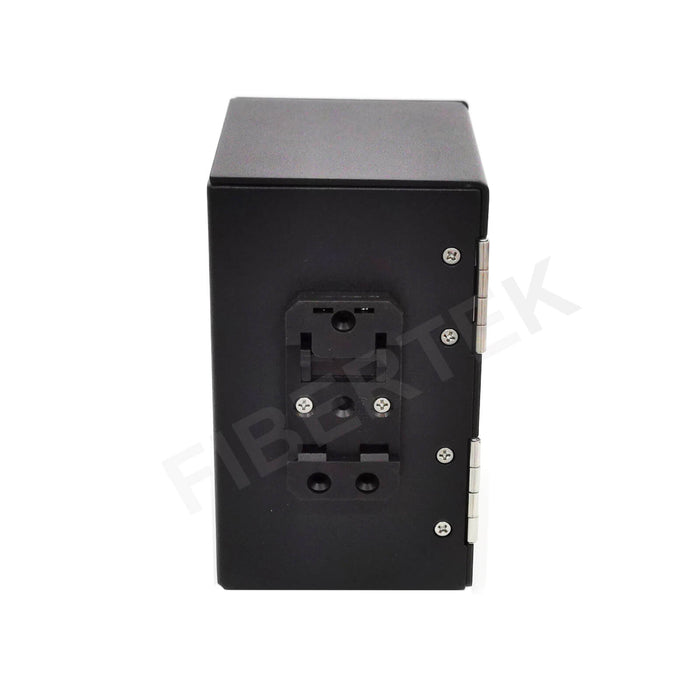

  • can be mounted on the DIN Rail track to provide space-saving

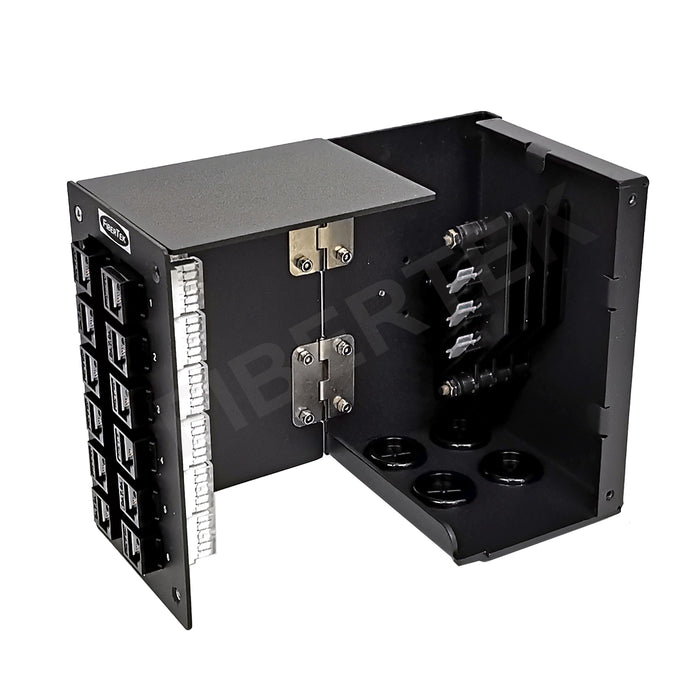

  • support up to 4 cable entries from the bottom of the panel
  • support up to 12 Ethernet port termination
  • come with double stackable cable holders



Specifications

DIN Rail Panel

  • Dimension : 140 mm Height  x 82mm Width x 103mm Depth



  • Material: Powder Coated Aluminium
  • Weight:  0.6kg (12 ports fully loaded)



UTP Cat 6A Keystone Jack

  • Ethernet Category Type: 6A
  • Bandwidth, MHz: 500
  • Connection style: Unshielded
  • Connector type: RJ45 / 8P8C
  • Connector material in the connector: Phosphor bronze
  • Contact coating material: Gold (50 microns)
  • Number of insertions: Up to 750
  • IDC contact: 180 degree - Toolless
  • Permissible diameter of conductor: 23 to 26AWG
  • Temperature range: Storage -40 to +60°C / Operation -10 to +60°C
  • Colour Type: White
  • Dimensions, W x H x D (mm): 16.2 x 20.9 x 31.5
  • Compliance Standards: Exceeds standard ISO/IEC 11801, EN50173, TIA/EIA-568
  • Supported application: 10Base-T, 100Base-T, 1000Base-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
