DIN Rail Fiber Optic Patch Panel DPPY24 LC Quad Duplex (BK Series)
General Description
The DPPY24 BK Series DIN Rail Fiber Optic Patch Panel with LC Quad Duplex Adapters is utilized to support the fusion splicing or direct termination works of the optical fibers from the fiber optic cables. It allows the optical slices of the optical fibers to be stored securely and neatly.
The DPPY24 BK series can support up to 4 optical cables in one patch panel. This feature allows space saving and provides ease of deployment. Also, the swing-out design feature helps to reduce the amount of time needed for pre-assembly or post assembly as the number of time needed to screw/unscrew is reduced with the lesser number of screws being used.

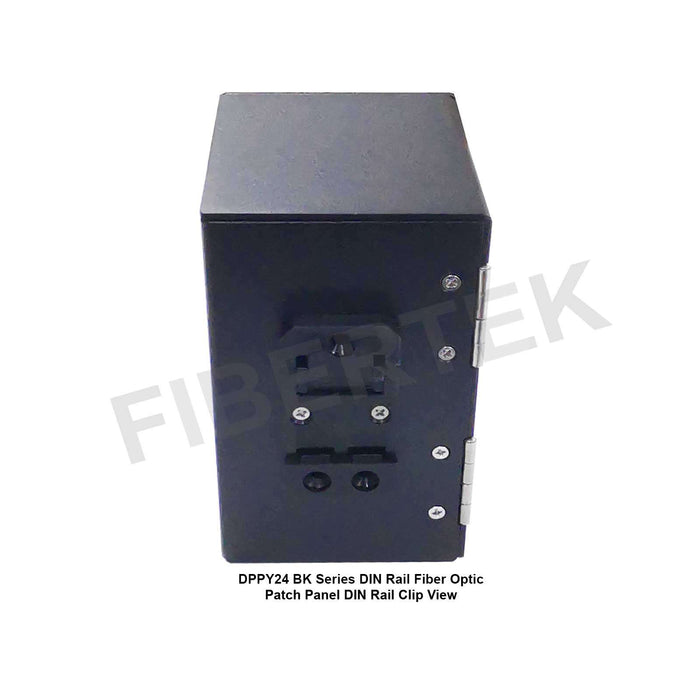

DIN Rail Clip - Horizontal or Vertical Mounting
Features
- DIN Rail mounting provides space-saving
-

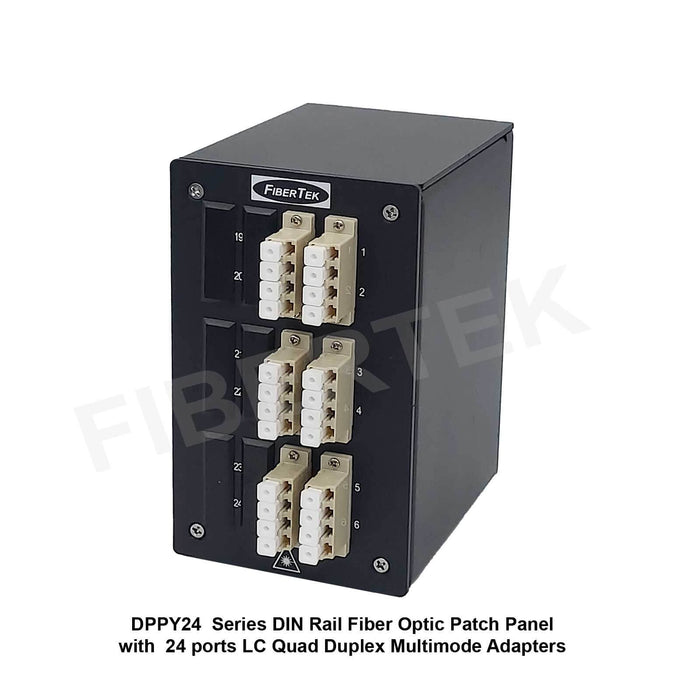

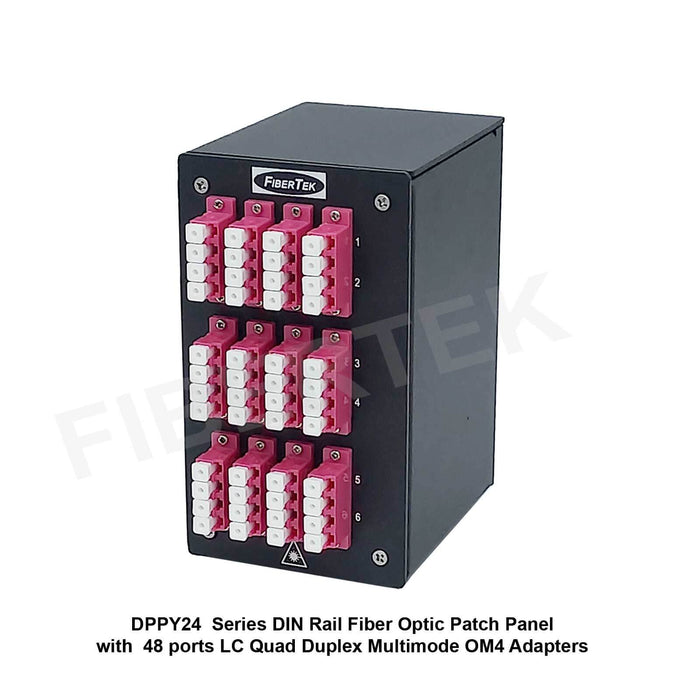

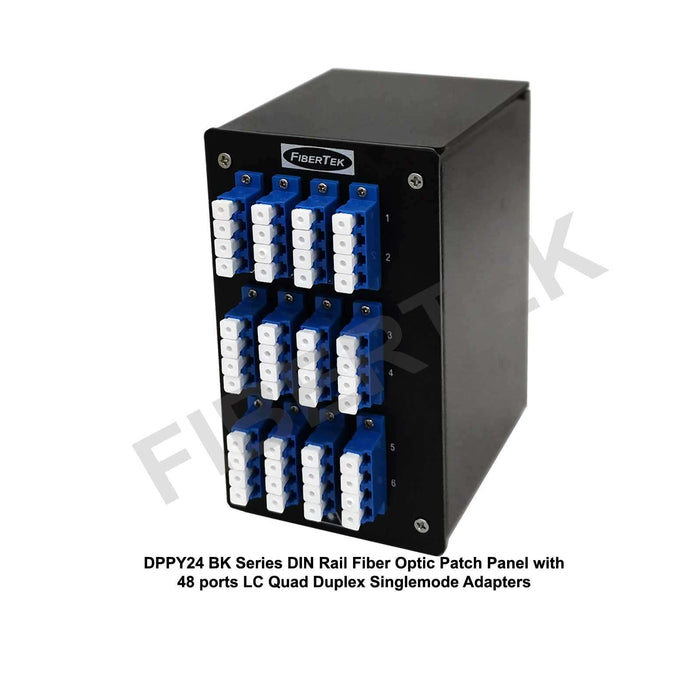

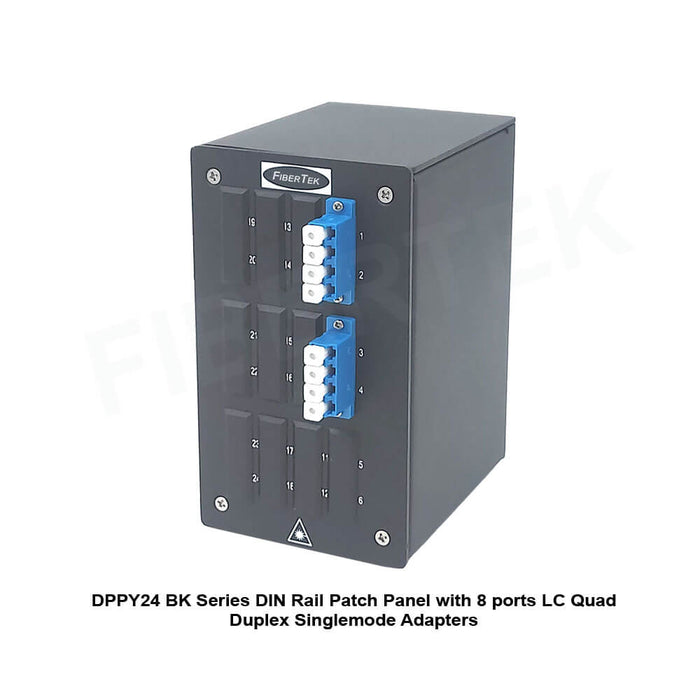

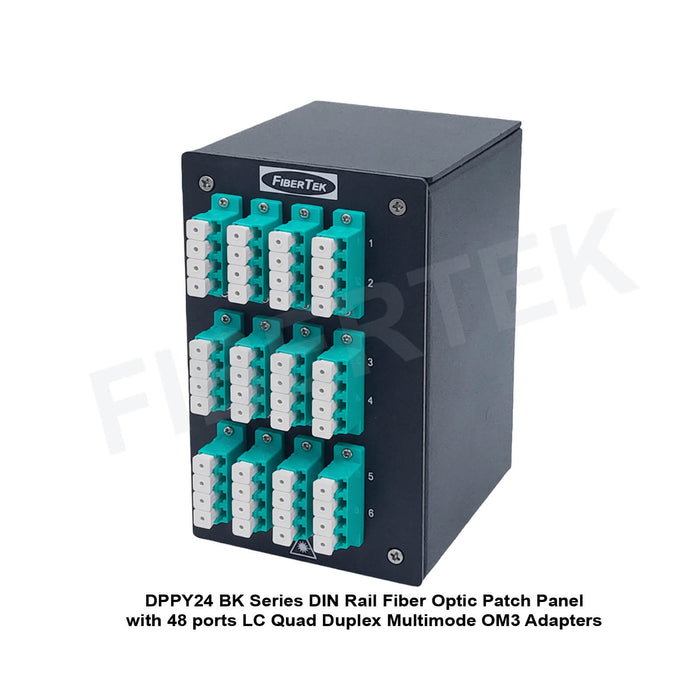

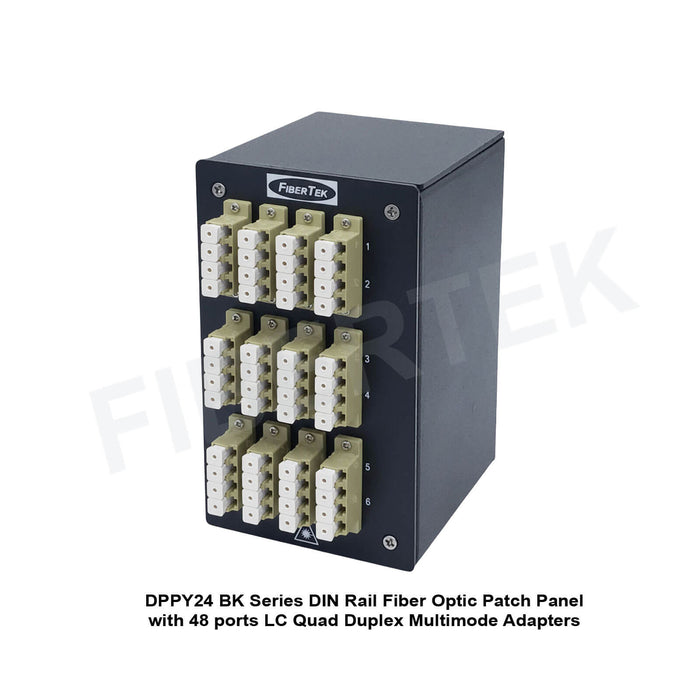

Up to 48 ports for LC Quad Duplex Adapter type
- Supports 4 cable entries and comes with 4 x M22 cable
gland suitable for cable with an outer diameter from
8mm to 14mm (± 1mm)
- Dimension : 140mm Height x 82mm Width x 103mm Depth
- Weight: 0.6kg (when fully loaded)
- Material: Powder-coated aluminium
Additional Product Information: DIN Rail fiber optic patch panel will be loaded with LC quad duplex adapters, 4 x splice holder (S-HO06Z), 4 x M22 cable gland and 40mm Splice sleeve (FSLEEVE040) - depends on the number of ports selected and 3 x cable clip. Those optical ports that are not loaded with adapters will be fitted with the blank plugs.
