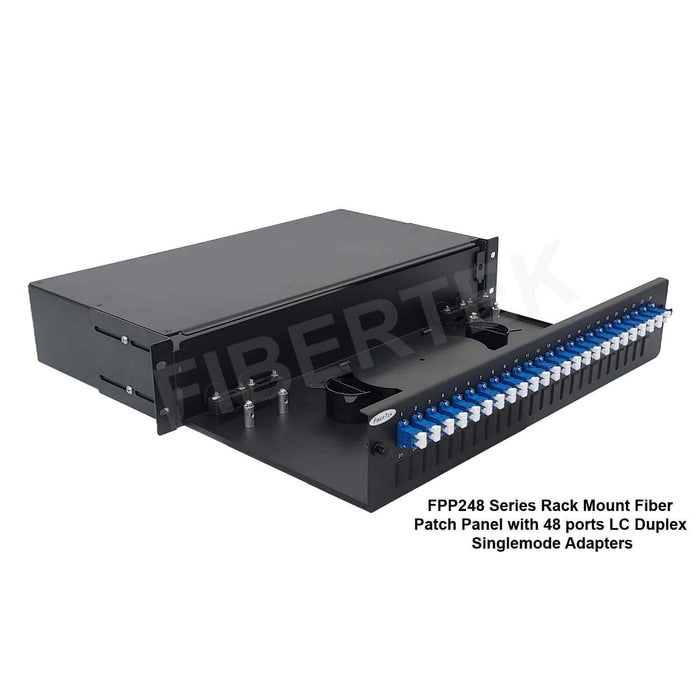

Rack Mount Sliding Fiber Optic Patch Panel with LC Duplex Adapters, 2U Height, FPP248 Series

Original price USD $158.00 - Original price USD $210.00
Original price
USD $158.00 (Excl. GST)
USD $172.22 (Incl. GST)
USD $158.00 - USD $210.00
Current price
USD $158.00 (Excl. GST)
USD $172.22 (Incl. GST)



Improved design with six cable entries instead of the previous four cable entries to accommodate more fiber optic cables.



General Description

The FPP248 series LC duplex rack mount sliding fiber optic patch panel is 2U in height and pre-loaded with the LC duplex type fiber optic adapters. It includes a splice management kit with splice trays, spools, and sleeves to support optical fiber splicing.

This patch panel is designed with a slidable working tray that can be adjusted to different working angles, ranging from 10 degrees to 45 degrees, to allow for easy maintenance access, even when installed in a network server rack/cabinet. Additionally, it features a removable top cover to facilitate maintenance and installation work.


FPP248 series with removable top cover

FPP248 Series Removable Top Cover

FPP248 series with six cable entries at the rear of the patch panel

FPP248 series with six cable entries at rear of the fiber patch panel

Features
  • can be pre-loaded with LC Duplex Fiber Optic Adapters (Singlemode, Multimode OM1, OM2, OM3 and OM4)
  • Spools, cable glands, splice trays and splice sleeves are provided
  • Protrude or recess mounting option available by adjusting the side mounting brackets
  • 4 cable entries (20mm) and 2 cable entries (25mm) with cable gland and dust cover
  • 4 clamping system to secure strength members from the fiber optic cables

    Specifications

    Dimension: 88mm Height  x 482mm Width  x  230mm Depth

    Mounting Adjustment Range: 50mm

    Material & Coating: Aluminium, Electrostatic Powder Coating

    Material Thickness: 1.5mm

    IP Rating: IP20

    Colour: Black RAL 9004

    Weight: 2.15kg (without packaging)

    Operating Temperature: -20 degrees Celsius to 70 degrees Celsius

    Standards comply: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1

    Additional Product Information: The FPP248 Series Rack Mount Patch Panel with LC duplex adapters will be loaded with LC duplex adapters (according to the number of ports specified), splice trays, spools, cable glands and splice sleeves.
