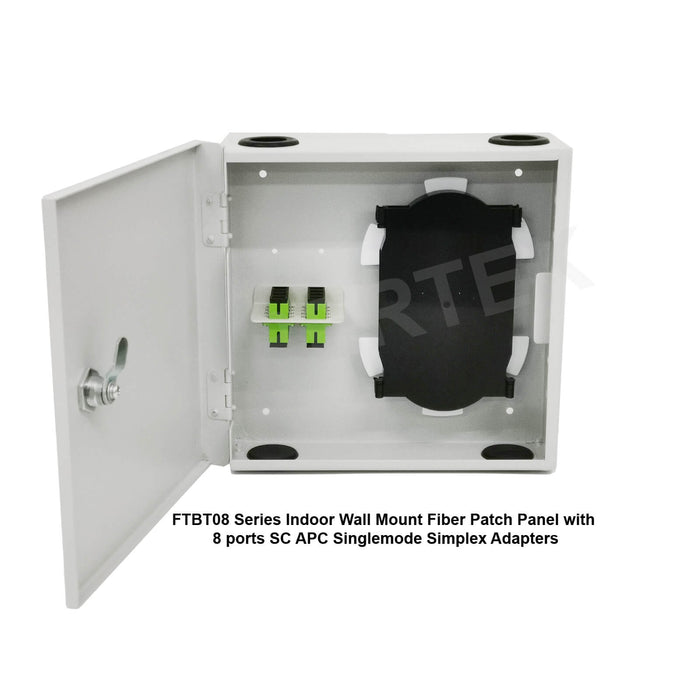

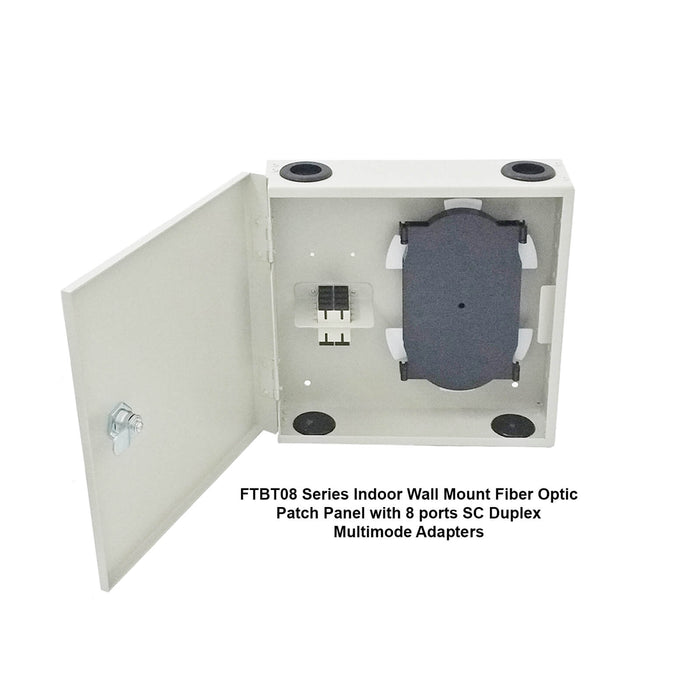

Indoor Wall Mount Fiber Optic Patch Panels FTBT08 Series

General Description

FTBT08 Series Wall Mount Fiber Optic Patch Panel is suitable to be deployed in an indoor environment condition. The indoor wall mount fiber patch panel provides a mean for safe and neat storage of the optical fiber splices and makes it easier for the maintenance work of the optical network to be carried out in the future.

For network connectivity, the indoor wall mount fiber patch panel can be pre-installed with the fiber optic adapter type required. When fully loaded with FC, SC and ST adapter types, up to 8 optical fibers are supported. If the LC adapter type is chosen, the fiber patch panel can support up to 16 optical fibers.

Basic Construction

Features

• Consist of one compartment
• Support 8 optical ports configuration (16 ports for LC Duplex Adapters)
• Come in the key lock for security purposes
• Come in 4 cable entries with rubber grommets



Specifications

Material:  Powder-coated aluminium (Colour: RAL 7035, Light Grey)

Dimension (H x W x D):  230mmx 230mm x 60mm

Weight:  0.9kg (exclude packaging)

Additional Product Information: FTBT08 Series Indoor wall mount fiber optic patch panel will be loaded with fiber optic adapters, splice tray, spools and splice sleeves.
