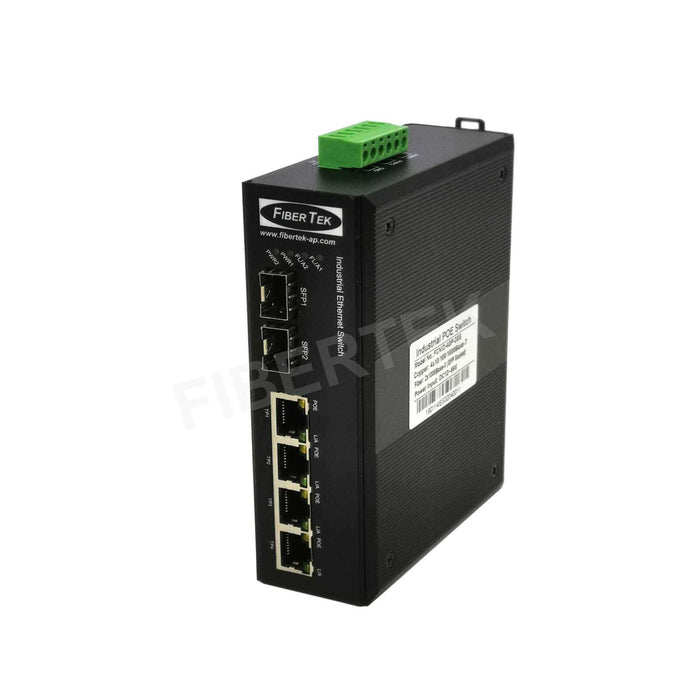

Industrial Ethernet Media Converter PoE/PoE+Gigabit Ethernet 4 x 10/100/1000Base-TX to 2 x 1000Base-FX (SFP) Un-managed FCNID-4GP-2GS

General Description

The FCNID-4GP-2GS is an Industrial PoE/PoE+ Gigabit Ethernet media converter that can convert and extend the transmission distance of data signals based on the type of 1.25Gbps SFP transceiver selected. It comes with 4 Ethernet ports and 2 SFP slots. The Ethernet port can supply power of up to 30 watts to power up remote equipment such as IP video cameras, alarms and tracking devices without the need for an additional power supply.

The FCNID-4GP-2GS is an Industrial PoE/PoE+ Gigabit Ethernet media converter that can operate in a wide range of temperatures from -40 degrees Celsius to 85 degrees Celsius, making it suitable to be installed in a rugged environment.

Features

· Come with 2 x 1000Base-X SFP Slot to support Daisy-Chain topology
· Auto MDI/MDI-X function
· Auto-negotiation for speed and Half/Full-duplex transmission mode
· Support store-and-forward working function
· Max packet size: 10K bytes
· Come with a resettable fuse to prevent current overload
· Come with IP-40 rating protection
· Wide redundant power design range from 12 to 56VDC
· Provide protection against power polarity reverse
· Provide protection against electrical fast transient
· Provide protection against electrostatic discharge (ESD)

Application diagram

Standard Compliances

EMC: CE
EMI: FCC Part 15 CLASS A
EMS: IEC 61000-4-2 Level 4 (8K/15K)
         IEC 61000-4-3 Level 3 (10V/m)
         IEC 61000-4-4 Level 3 (1V/2V)
         IEC 61000-4-5 Level 3 (4KV/2KV)
         IEC 61000-4-6 Level 3 (10V/m)
         IEC 61000-4-8 Level 4 (30A/m)
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32 0.5m
Vibration: IEC 60068-2-6
Railway Traffic: EN50121-4

Specifications

Standards Comply

• Standards


  IEEE802.3 10Base-T
  IEEE802.3u 100Base-TX
  IEEE802.3ab 1000Base-T
  IEEE802.3z 1000Base-SX/LX standards
  IEEE802.3x Flow control and back pressure
  IEEE802.1d Spanning Tree
  IEEE802.3af/at POE

Interface

• Copper Port
  Data Rate: 10/100/1000M
  Connector: 4 x RJ45


• F/O Port
  Data Rate: 1.25Gbps
  Connector: 2 x SFP slot

Performance

• Processing Type: Store and Forward

• Back Bandwidth: 12Gbps
• MAC Address Size: 1Kbit
• Packet Buffer Size: 1Mbit
• Time Delay: <10us
• Frame: 10Kbytes

LED Indicators

• Indicators
  PWR1: ON=Power Connected
  PWR2: ON= Power Connected
  FL/A: ON=Fiber Connected; Active=Data Transmitting
  TL/A: ON=Copper Connected; Active= Data Transmitting
  POE: ON=Power Working; Off=No Power



Operating and Environmental

• Operating Temperature
  -40°C ~ 85°C

• Storage Temperature
  -40°C ~ 95°C

• Humidity
  5% ~ 95%, non-condensing


Dimension and Weight

• Dimension (mm)
  138*107*45mm (HXDxW)



• Weight
  0.48kg (weight for the device without packaging)



Housing

• Material
  Aluminium Alloy IP40 Rated



Power Requirement

• Input Voltage: 12~56 VDC, 48V~58V for PoE functionality

• Power Consumption: ≤7W
• PoE Budget: 15.4W x 4=62W(PoE), 30W x 4=120W(PoE+)
• Protection: Overload Current; Reverse Polarity
• Connector: Terminal Block



Installation

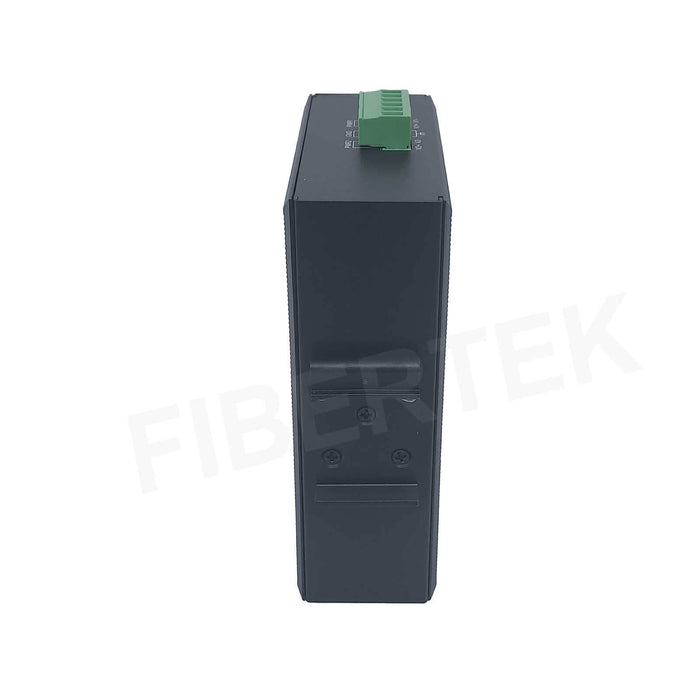

• can be DIN-Rail mount or wall-mount (mounting bracket sold separately)
