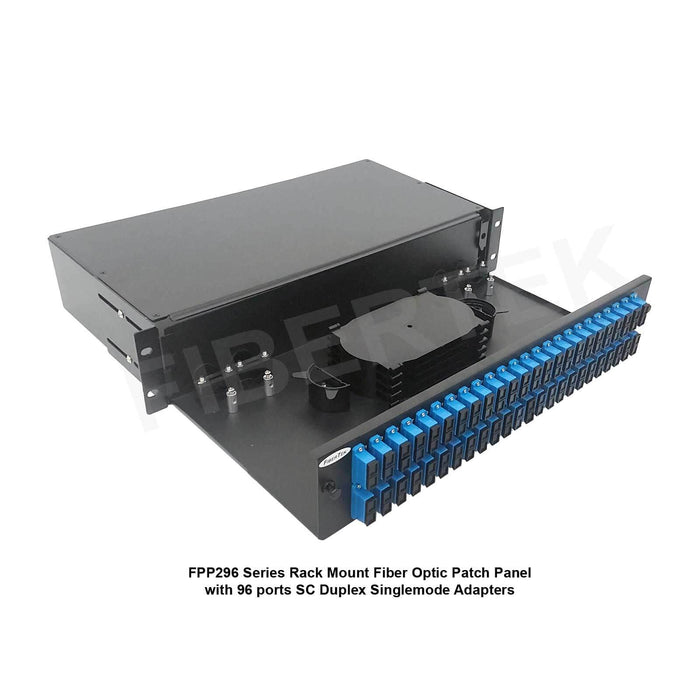

Rack Mount Sliding Fiber Optic Patch Panel with SC Duplex Adapters, 2U Height, FPP296 Series

Original price USD $106.00 - Original price USD $140.00
Original price
USD $106.00
USD $106.00 - USD $140.00
Current price USD $106.00

General Description

The FPP296 series with SC Duplex Adapters is a 19-inch rack mount fiber patch panel that will come pre-loaded with the SC duplex adapters. The fiber patch panel when it is fully loaded can accommodate up to 96 optical fibers occupying only a 2U height to provide space saving especially if it is being deployed on the server rack cabinet.

To facilitate installation or troubleshooting work, the FPP296 series with SC duplex adapter has a slidable working tray which can be lowered to various working angles such as 45 degrees to allow the cable connections to be reached even after the panel has been installed on the server rack cabinet. The fiber patch panel also comes with a removable top cover that can be removed for installation and maintenance works to be carried out.

FPP296 series Removable Top Cover

FPP296 picture with removable top cover

Features
  • Pre-Loaded with SC Duplex Fiber Optic Adapters
  • Simple Splice Management Kit provided - Spools, cable glands, splice trays
    and splice sleeves are provided
  • Offer protrude or recess mounting option as side mounting brackets
    are adjustable
  • 4 cable entries (20mm) with cable gland and dust cover
  • 4 clamping system to secure strength member from cable

    Specifications

    Dimension: 87mm Height  x 482mm Width  x  230mm Depth

    Mounting Adjustment Range: 50mm

    Material & Coating: Aluminium, Electro-Static Powder Coating

    Material Thickness: 1.5mm

    IP Rating: IP20

    Colour: Black RAL 9004

    Weight: 2.5kg (fully loaded without packaging)

    Operating Temperature: -20 degrees Celsius to 70 degrees Celsius

    Standards comply: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1

    Additional Product Information: The FPP296 Series rack Mount Patch Panel with SC duplex adapters will be loaded with SC duplex adapters (according to the number of ports specified, splice trays (depending on the number of ports), 1 set of spools, 4 cable glands and splice sleeves (according to the number of ports specified).

    Accessories of FPP248 Series Rack Mount Patch Panel
